DFM: Design for manufacturing cnc milling

CNC Vertical Machining Centers (VMCs) are among the most widely used manufacturing methods for producing high-precision components. However, moving into production without a well-optimized design can lead to higher manufacturing costs, longer machining times, and unnecessary quality issues.

In this guide, we’ll cover the key design considerations for CNC vertical machining, helping you create parts that are easier to manufacture, more cost-effective, and capable of meeting demanding quality requirements. If you’re looking for expert guidance or precision CNC machining services for your project, feel free to contact the FastFab team.

What is cnc vertical machining?

CNC vertical machining is a subtractive manufacturing process in which the cutting tool moves along the vertical (Z) axis. It is typically performed on machines with three or more axes, allowing for the production of complex, high-precision components.

This manufacturing method is commonly used to machine a wide range of engineering materials, including:

– Aluminum alloys: 5083, 6061, and 7075
– Steel alloys: ST37(1.0037) and C45
– Stainless steels: 304, 304L, 403, and 416L
– Engineering plastics: Delrin (Acetal/POM), UHMW, LDPE, HDPE, and PEEK

Thanks to its excellent accuracy, repeatability, and versatility, CNC vertical machining is the preferred choice for manufacturing precision parts across industries such as automotive, aerospace, industrial equipment, electronics, and medical devices.

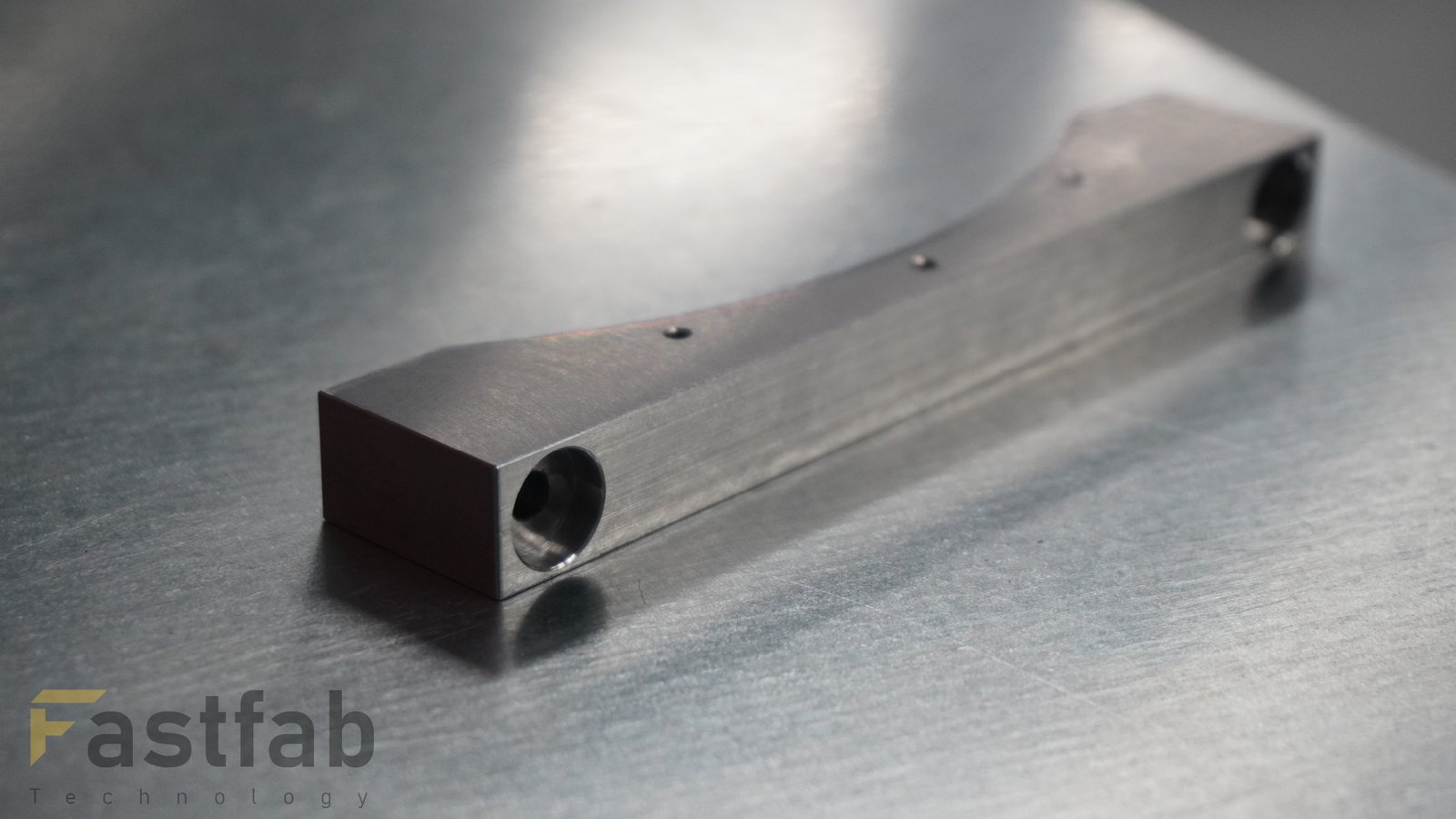

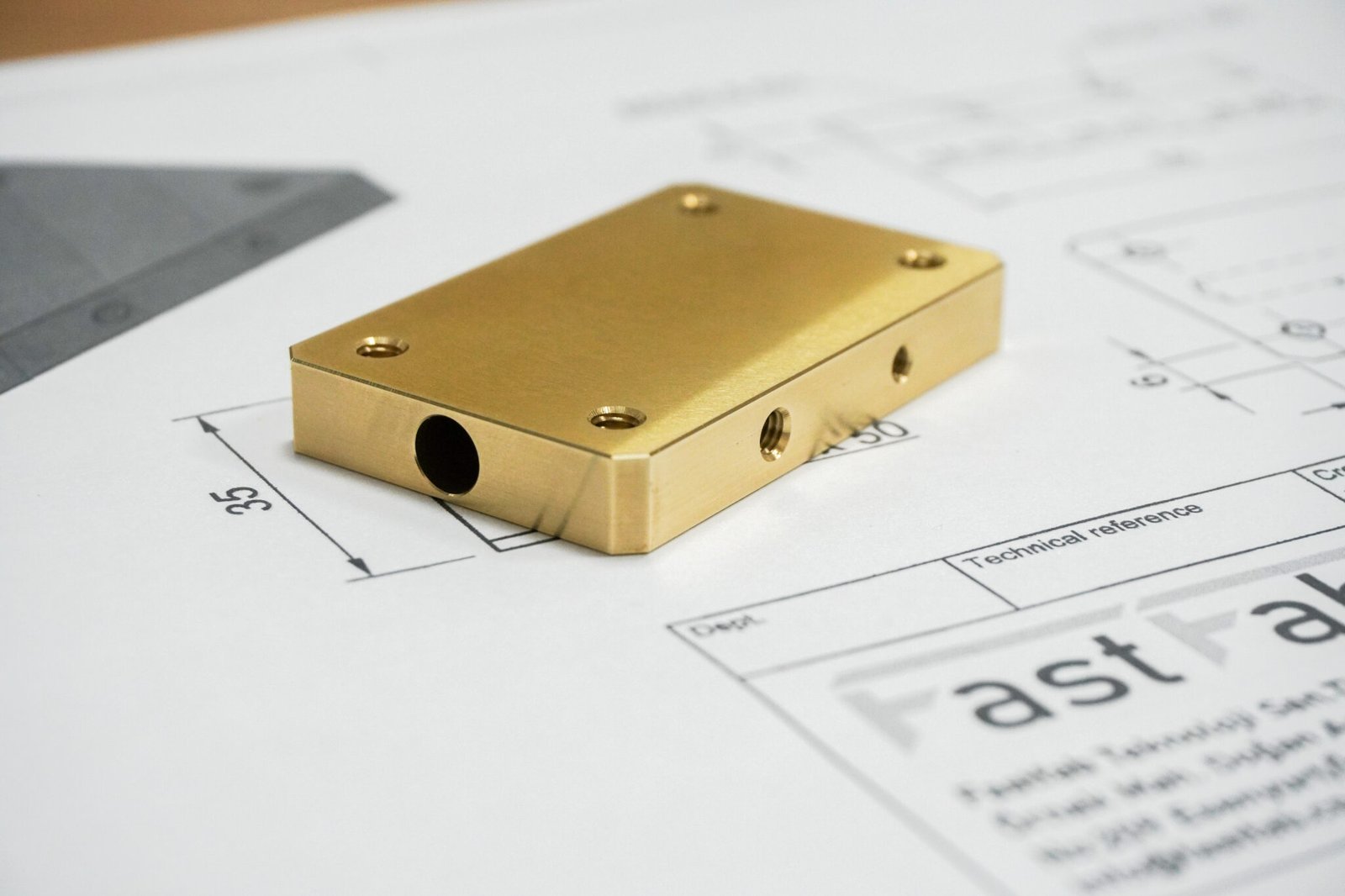

ST37 Machined Clamp
Clamp machined from S235JR (1.0037) Steel

Why Are There Design Rules for CNC Machining?

Although CNC vertical machining may appear to offer complete design freedom, it is actually constrained by cutting tool geometry, machine capabilities, and the physical limitations of the machining process. Factors such as end mill diameter, tool reach, vibration (chatter), workholding methods, and machining forces all influence how a part should be designed.

For this reason, CNC design guidelines are more than just recommendations—they are fundamental principles that directly impact manufacturability, production cost, machining time, and final part quality.

Designing with these principles in mind provides several key benefits:

  • Shorter machining times
  • Lower manufacturing costs
  • Improved surface finish and overall part quality
  • Greater dimensional accuracy and process reliability

If you’re unsure whether your design is optimized for CNC machining, the FastFab team can review your CAD files and provide expert Design for Manufacturing (DFM) feedback before production begins.

Most Common Mistakes in CNC Part Design

Incorrect design decisions can significantly increase machining time, production costs, and the risk of manufacturing issues.

1. Unnecessarily Narrow Pockets

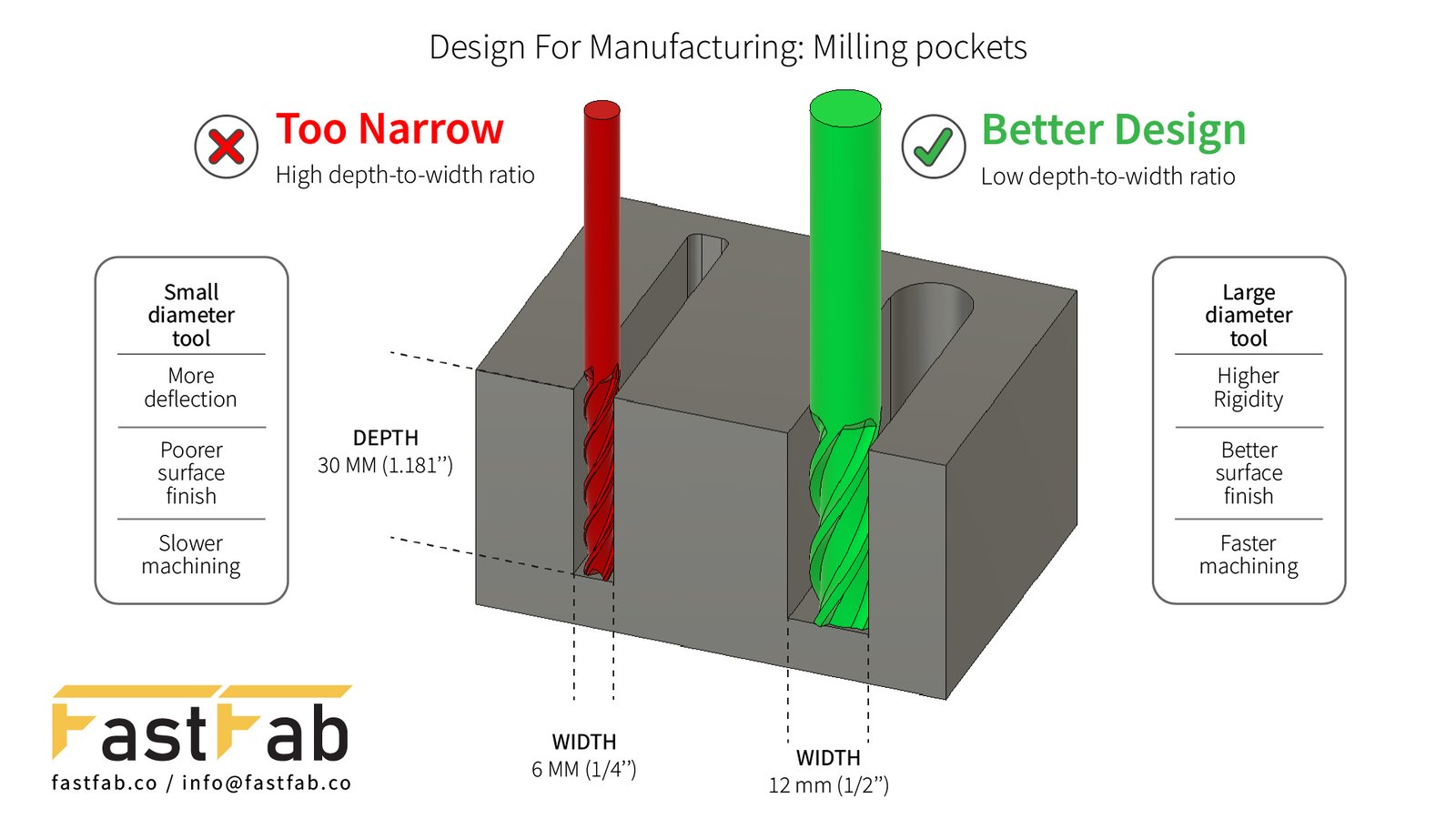

Deep, narrow pockets are among the most common design features that increase machining complexity. They often:

  • Require smaller-diameter cutting tools
  • Increase machining time due to lower material removal rates
  • Raise the risk of tool deflection and tool breakage

Whenever possible, design pockets that are wider and more accessible. Larger pockets allow the use of larger cutting tools, resulting in faster machining, improved rigidity, and lower manufacturing costs.

2. Sharp Internal Corners

Because CNC end mills have a circular cutting profile, it is impossible to produce perfectly sharp internal corners using conventional milling operations.

To improve manufacturability:

  • Add an internal corner radius (for example, R2 or R3) wherever possible.

  • For mating parts that require square internal corners, consider using a dogbone relief. This design modification allows standard cutting tools to fully machine the corner while ensuring proper fit during assembly.

Incorporating corner radii or dogbone features reduces machining time, minimizes tool wear, and eliminates the need for costly secondary machining operations.

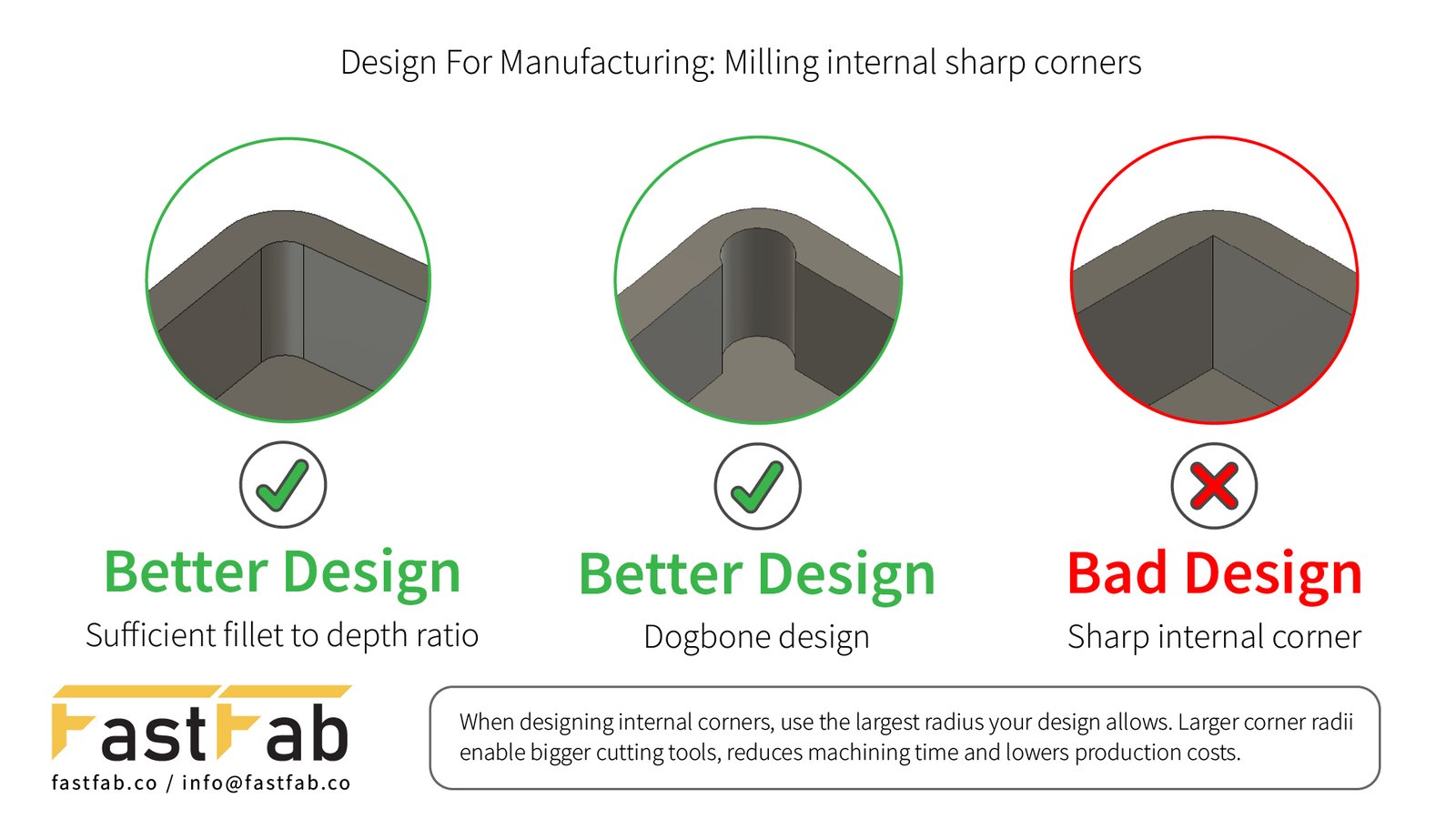

Design For Manufacturing Internal Corners
3. Overly Tight Tolerances

Applying a tolerance of ±0.01 mm to every feature may seem like the safest approach, but it often leads to unnecessary manufacturing costs and longer machining times.

Overly tight tolerances can:

  • Increase machining and inspection time

  • Require additional finishing operations

  • Raise production costs without improving the functionality of the part

Instead, apply tighter tolerances only to features that are critical for fit, function, or assembly. For non-critical dimensions, specifying more relaxed tolerances allows for faster, more cost-effective manufacturing while maintaining the required performance.

At FastFab, we work closely with our customers to optimize part designs and tolerance requirements, ensuring that precision is applied where it truly matters. This Design for Manufacturing (DFM) approach helps eliminate unnecessary costs, reduce lead times, and deliver high-quality parts more efficiently.




CNC Vertical Milling Design Guidelines

Minimum Tool Diameter and Pocket Depth

One of the most important considerations in CNC pocket design is the relationship between tool diameter and machining depth.

As a general guideline, the depth-to-tool-diameter ratio should ideally remain between 3:1 and 4:1.

Example:

  • A 3 mm end mill should generally be limited to a maximum cutting depth of approximately 10–12 mm.

Using excessively long cutting tools reduces rigidity, making them more susceptible to vibration (chatter) and tool deflection. These effects can negatively impact surface finish, dimensional accuracy, and the ability to maintain tight tolerances.

This guideline is especially important when designing deep internal pockets, where tool reach is often the limiting factor. Whenever possible, design shallower, more accessible pockets that allow the use of shorter and more rigid cutting tools, resulting in faster machining, improved accuracy, and lower manufacturing costs.

Wall Thickness

Designing walls that are too thin can create significant challenges during CNC machining. Thin features are less rigid and are more likely to deflect under cutting forces, leading to reduced machining accuracy and poor surface quality.

Excessively thin walls can:

  • Increase vibration (chatter) during machining

  • Reduce surface finish quality

  • Cause dimensional inaccuracies due to part deflection

  • Increase the risk of deformation, especially in aluminum and engineering plastics

As a general guideline, maintain adequate wall thickness wherever possible. Thicker, more rigid walls allow higher cutting parameters, improve dimensional stability, and produce a better surface finish while reducing overall machining time.

When thin walls are functionally required, machining strategies, tool selection, and workholding methods should be carefully optimized to minimize vibration and preserve part accuracy.

Hole Design

Designing holes with standard drill sizes is one of the simplest ways to reduce machining costs and improve production efficiency. Standard tooling is widely available, requires fewer tool changes, and results in faster, more reliable machining.

When designing holes, also consider their proximity to adjacent holes, edges, and thin walls. Placing holes too close together or too close to an edge can weaken the part, complicate machining, and increase the risk of deformation.

For threaded holes, always specify the appropriate standard tap drill size and ensure there is sufficient thread engagement for the intended application. As a general rule, a thread engagement of 1× the nominal thread diameter is sufficient for most steel applications, while 1.5× the nominal diameter is recommended for softer materials such as aluminum and many engineering plastics.

Examples:

Thread Size

Tap Drill DiameterRecommended Thread Engagement
M3 × 0.52.5 mm3–4.5 mm
M4 × 0.73.3 mm4–6 mm
M5 × 0.84.2 mm5–7.5 mm
M6 × 1.05.0 mm6–9 mm
M8 × 1.256.8 mm8–12 mm

Additional recommendations:

  • Provide adequate space for chip evacuation when designing blind holes.

  • Avoid unnecessarily deep holes, as they require longer drills, reduce tool rigidity, and increase machining time.

  • If a deep hole is unavoidable, consider whether it can be machined from both sides to improve accuracy and reduce manufacturing complexity.

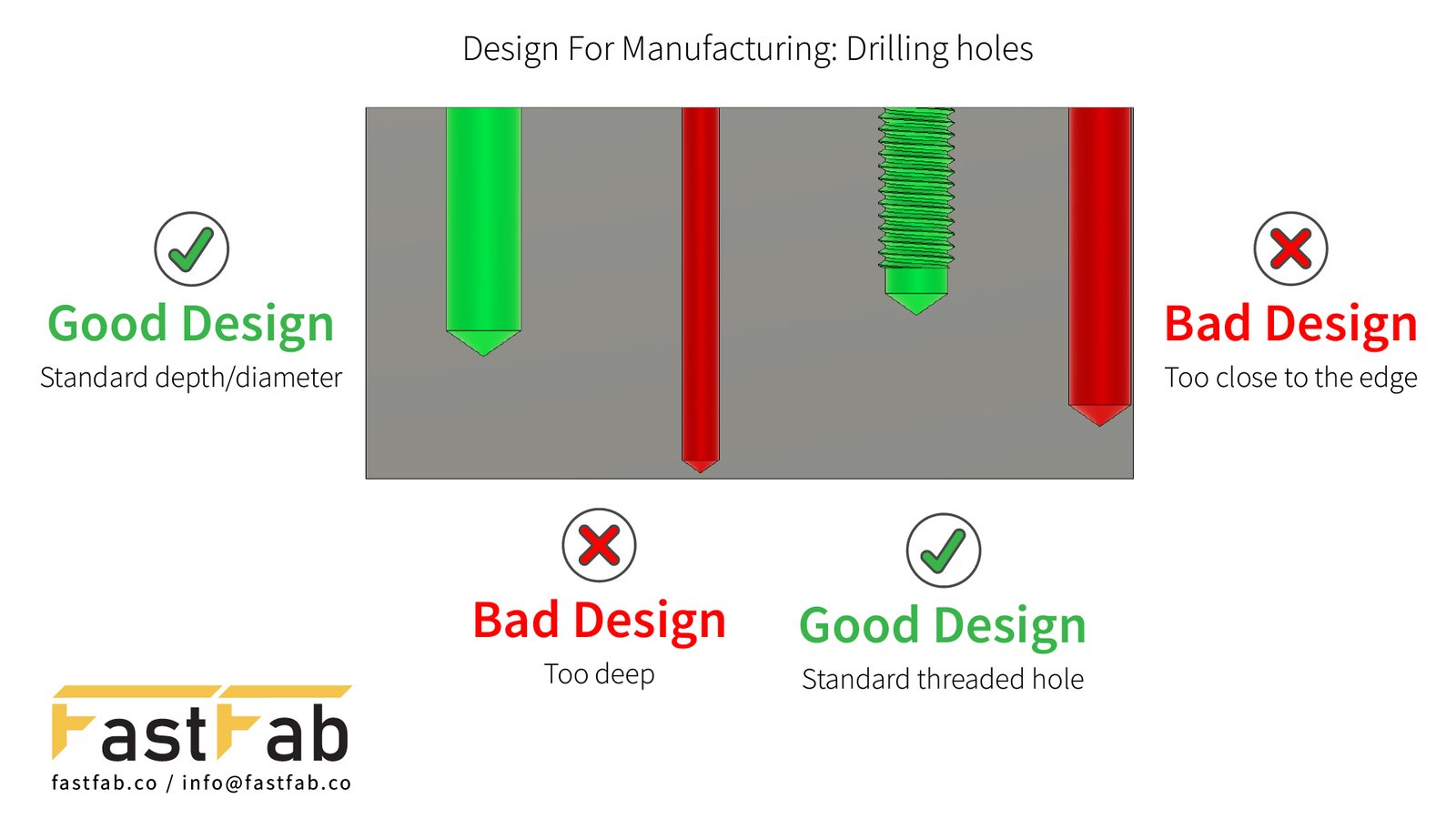

Design for manufacturing Drilling guide

Material Selection and Machinability

Choosing the right material is one of the most important factors in CNC vertical machining. Material selection affects not only machinability, but also dimensional accuracy, surface finish, tool life, and the risk of part distortion after machining. Even with optimized toolpaths and high-end CNC equipment, selecting an unsuitable material can compromise the final result.

This is especially critical for thin-walled components and parts requiring tight tolerances. Many engineering materials contain residual stresses from rolling, forging, casting, or heat treatment. As material is removed during machining, these internal stresses can be released, causing the part to warp or distort. For this reason, material selection should consider both mechanical properties and machining behavior during the design phase.

Common Materials for CNC Machining
*6061 Aluminum

Advantages

  • Excellent machinability

  • Low tool wear

  • High-quality surface finish

  • Good balance of strength and weight

Typical Applications

  • Aerospace components

  • Automotive parts

  • Industrial machinery

  • Prototypes and production parts

Design Considerations

  • Whenever possible, choose 6061-T651, which has been stress-relieved to minimize distortion during machining.

  • Thin-walled parts or components machined primarily from one side are more susceptible to warping due to the release of residual stresses.


*7075 Aluminum

Advantages

  • Very high strength-to-weight ratio

  • Excellent mechanical properties

  • High hardness

Typical Applications

  • Aerospace structures

  • Defense applications

  • High-load mechanical components

Design Considerations

  • More difficult to machine than 6061.

  • Generates higher cutting forces, increasing tool wear.

  • Residual stresses are generally more pronounced, making distortion more likely during aggressive material removal.


*C45 Steel (AISI 1045 / EN 1.0503)

Advantages

  • High strength

  • Widely available

  • Good mechanical properties

Typical Applications

  • Shafts

  • Machine components

  • Mold and fixture elements

Design Considerations

  • Machinability varies depending on hardness and heat treatment.

  • Removing large amounts of material may release internal stresses, resulting in dimensional changes after machining.


*4140 Alloy Steel (EN 1.7225)

Advantages

  • High strength and toughness

  • Excellent heat-treatment capability

  • Suitable for demanding mechanical applications

Typical Applications

  • Mold components

  • Tooling

  • Heavy-duty mechanical parts

Design Considerations

  • Pre-hardened grades are significantly more difficult to machine.

  • Proper tool selection, cutting parameters, and machining strategies are essential.

  • Poor machining practices can lead to distortion, excessive tool wear, and reduced dimensional accuracy.

*ST37 (S235JR) Structural Steel

Advantages

  • Relatively easy to machine

  • Cost-effective

  • Readily available

Typical Applications

  • Structural components

  • Frames

  • General-purpose fabricated parts

Design Considerations

  • Material consistency is generally lower than C45 or 4140.

  • Surface finish and dimensional stability may be less predictable.

  • Thin or highly precise parts may experience unexpected deformation during machining.

*Stainless Steel (304 / 316)

Advantages

  • Excellent corrosion resistance

  • High durability

  • Suitable for demanding environments

Typical Applications

  • Food processing equipment

  • Medical devices

  • Chemical processing systems

  • Marine applications

Design Considerations

  • Considerably more difficult to machine than carbon steels and aluminum alloys.

  • Work-hardens rapidly, requiring appropriate cutting parameters and tooling.

  • Higher cutting temperatures reduce tool life and make maintaining tight tolerances and superior surface finishes more challenging.

  • Adequate coolant application and conservative machining strategies are essential for achieving consistent results.


How to Reduce CNC Machining Costs

Optimizing a part for manufacturability is one of the most effective ways to reduce production costs without sacrificing quality or performance. The following design practices can significantly improve machining efficiency.

1. Use Standard Cutting Tools

Whenever possible, design features that can be machined using standard end mills, drills, and taps.

Custom or specialized tooling often:

  • Increases setup and tooling costs

  • Extends lead times

  • Adds unnecessary manufacturing complexity

Designing around commonly available tool sizes results in faster, more economical production.


2. Minimize the Number of Setups

Every time a part must be removed and repositioned, additional time is required for fixturing, alignment, and verification.

Designing parts that can be completed in a single setup offers several advantages:

  • Shorter machining times

  • Improved dimensional accuracy

  • Better feature-to-feature alignment

  • Lower overall manufacturing costs

Whenever practical, orient your design so that most machining operations can be completed without repositioning the workpiece.


3. Eliminate Unnecessary Features

Decorative or non-functional details often increase machining time without providing any engineering benefit.

Examples include:

  • Excessively small fillets

  • Decorative pockets or grooves

  • Features with unnecessarily tight tolerances

  • Complex geometries that do not improve part performance

Keeping the design as simple as possible while meeting functional requirements helps reduce production costs and improve manufacturing efficiency.

If you’re unsure whether your design is optimized for production, the FastFab engineering team can review your CAD files and provide Design for Manufacturing (DFM) recommendations. Contact us at info@fastfab.co to discuss your project.


Conclusion: Better Design Leads to Lower Costs and Higher Quality

Successful CNC machining begins with a design that is optimized for manufacturing. Even small design improvements can significantly reduce machining time, lower production costs, improve dimensional accuracy, and enhance the overall quality of the finished part.

At FastFab, we help customers optimize their designs for CNC machining, whether they’re developing a single prototype or preparing for full-scale production. From Design for Manufacturing (DFM) reviews and material selection to prototyping and production machining, our team works with you to deliver high-quality parts as efficiently and cost-effectively as possible.
